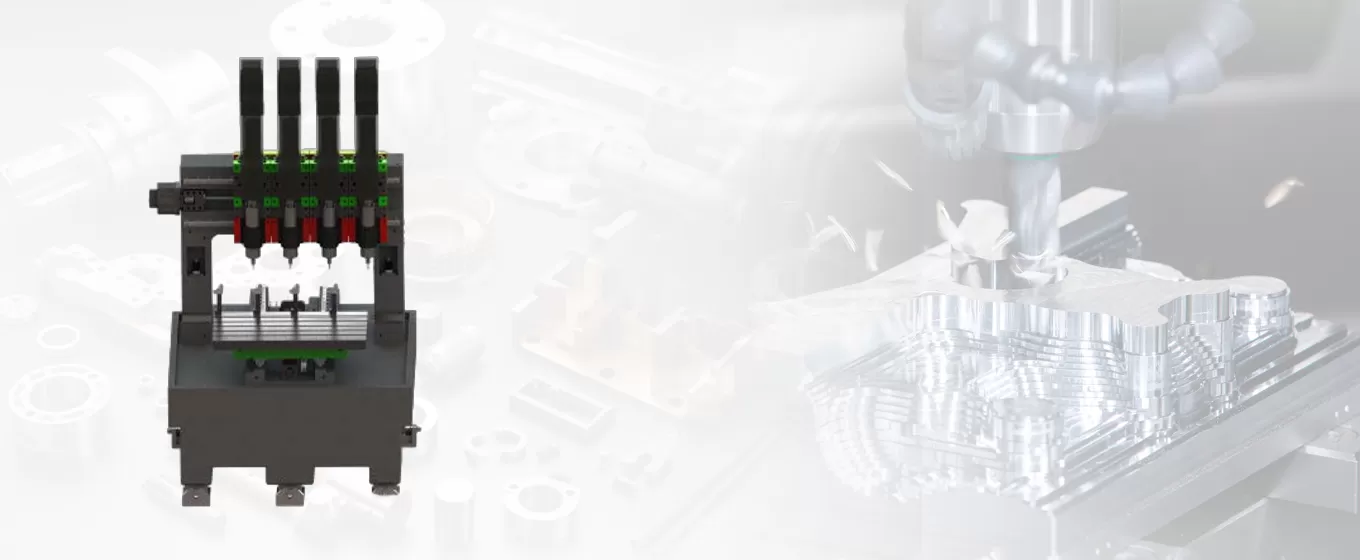

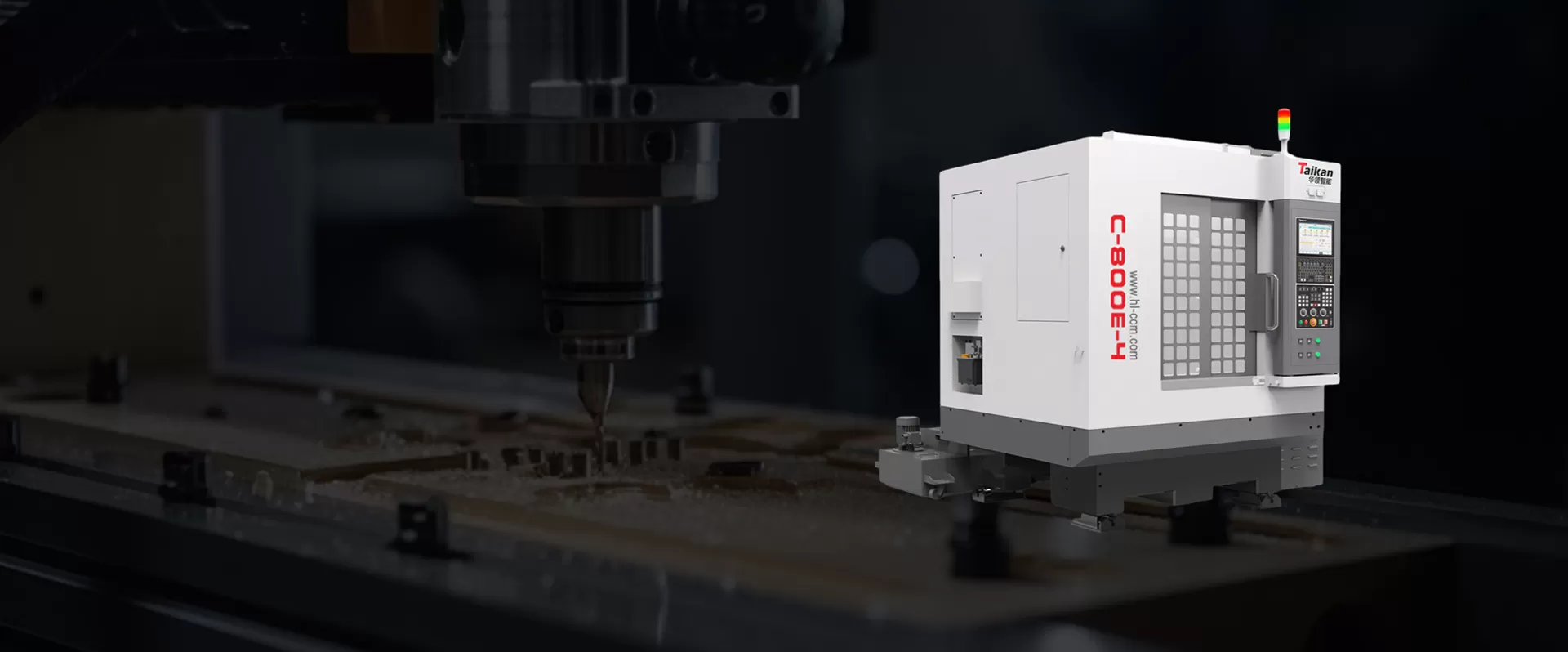

Çok kafalı yüksek hızlı gravür işleme merkezi

Masa boyutu

Mm

700 × 500

840 × 500

840 × 500

840 × 500

X/Y/Z ekseni seyahat

Mm

350/500/150

420/500/150

280/500/150

210/500/150

Mili

60,000 r/dak, 2.5 kW

60,000 r/dak, 2.5 kW

60,000 r/dak, 2.5 kW

60,000 r/dak, 2.5 kW

Takım tutucu özellikleri

/

T11

T11

T11

T11

Takım dergisi

Adet

12T × 2

25T × 2

25T × 3

25T × 4

Masa boyutu

Mm

1,100 × 500

1,100 × 500

1,100 × 500

840 × 500

1,260 × 500

X/Y/Z ekseni seyahat

Mm

520/500/150/200

380/500/150/200

280/500/150/200

210/500/150

210/450/150

Mili

36,000/30,000 r/dak, 6.0/7.5 kW

36,000/30,000 r/dak, 6.0/7.5 kW

36,000/30,000 r/dak, 6.0/7.5 kW

30,000 r/dak, 2.5 kW

60,000 r/dak, 2.5 kW

Takım tutucu özellikleri

/

T11

T11

T11

BT30

IS020

Takım dergisi

Adet

16T × 2/21T × 2

16T × 3/21T × 3

16T × 4/21T × 4

16T × 4/21T × 4

20T × 6
